NimbleTrack 3D Scanner
$POA
Highly compact and agile
Precise 3D measurements of small-to-medium-sized parts
On-board processing, 3D scanner and optical tracker
Wireless freedom
-
Multiple Scan Modes:
17 blue laser crosses
7 parallel laser lines
1 extra blue laser line for deep hole scanning.
Laser Class: Class II (eye-safe)
Accuracy (i-Scanner): Up to 0.020mm
Accuracy (i-Tracker): Up to 0.025mm

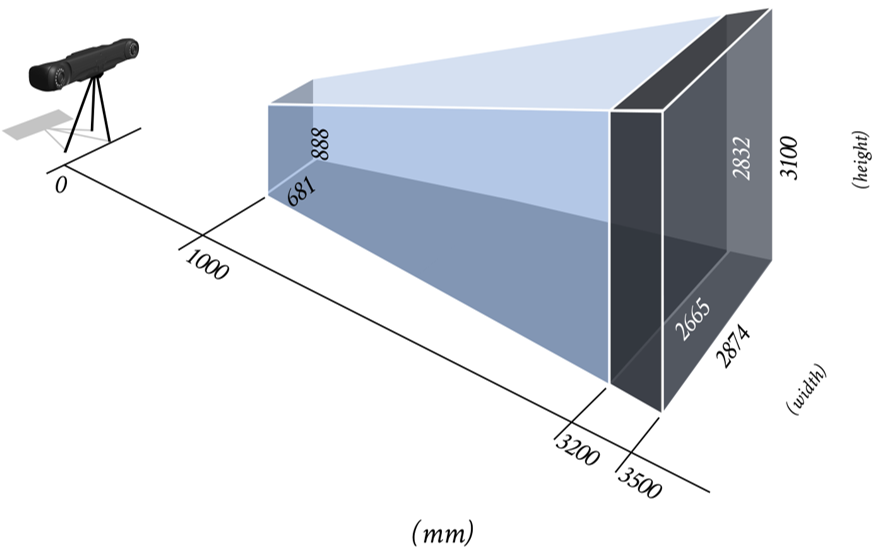

Tracking Distance per i-Tracker: 3200mm
Resolution: 0.020mm
Scanning Rate: Up to 4.9 million measurements per second
Scanning Area: Up to 500mm x 600mm
Scanning Frame Rate: 120 fps
Volumetric Accuracy:
Standard 0.064mm
Paired with MSCAN-L15 0.044mm + 0.012mm/m
Hole Position Accuracy 0.050mm
Stand-off Distance: 300mm
Depth of Field: 550mm
Operating Temperature: -10°C to 40°C
Operating Humidity: 10% to 90% RH
-
File Output: .stl, .ply, .obj, .asc, .igs, .txt
Connectivity: USB 3.0, network interface
Supported Software: DefinSight, ScanViewer, Metrolog X4
Operating Systems: Windows(10, 11), Mac OS X
-
i-Scanner Dimensions: 238mm x 203mm x 230mm
i-Scanner Weight: 1.3kg (Net weight)
i-Tracker Dimensions: 570mm x 87mm x 94mm
i-Tracker Weight: 2.2kg (Net weight)
Protection Case Dimensions: 1000mm x 425mm x 280mm
-
Calibration board
Power cable and adaptor
USB 3.0 cable
2000 6mm marker dots
1000 3mm marker dots
USB dongle
USB drive with user guide and DefinSight Software
Multi-Tracker Measurement
The NimbleTrack can dynamically extend its measurement range by adding more i-Trackers. In this way it can measure large-scale objects without compromising accuracy.
Video demonstrating the scanning features and operation of the NimbleTrack Wireless 3D scanner.
i-Probe 500
The NimbleTrack can be paired with a tracking i-Probe to print inaccessible areas such reference holes and hidden points
