3 Scan Modes:

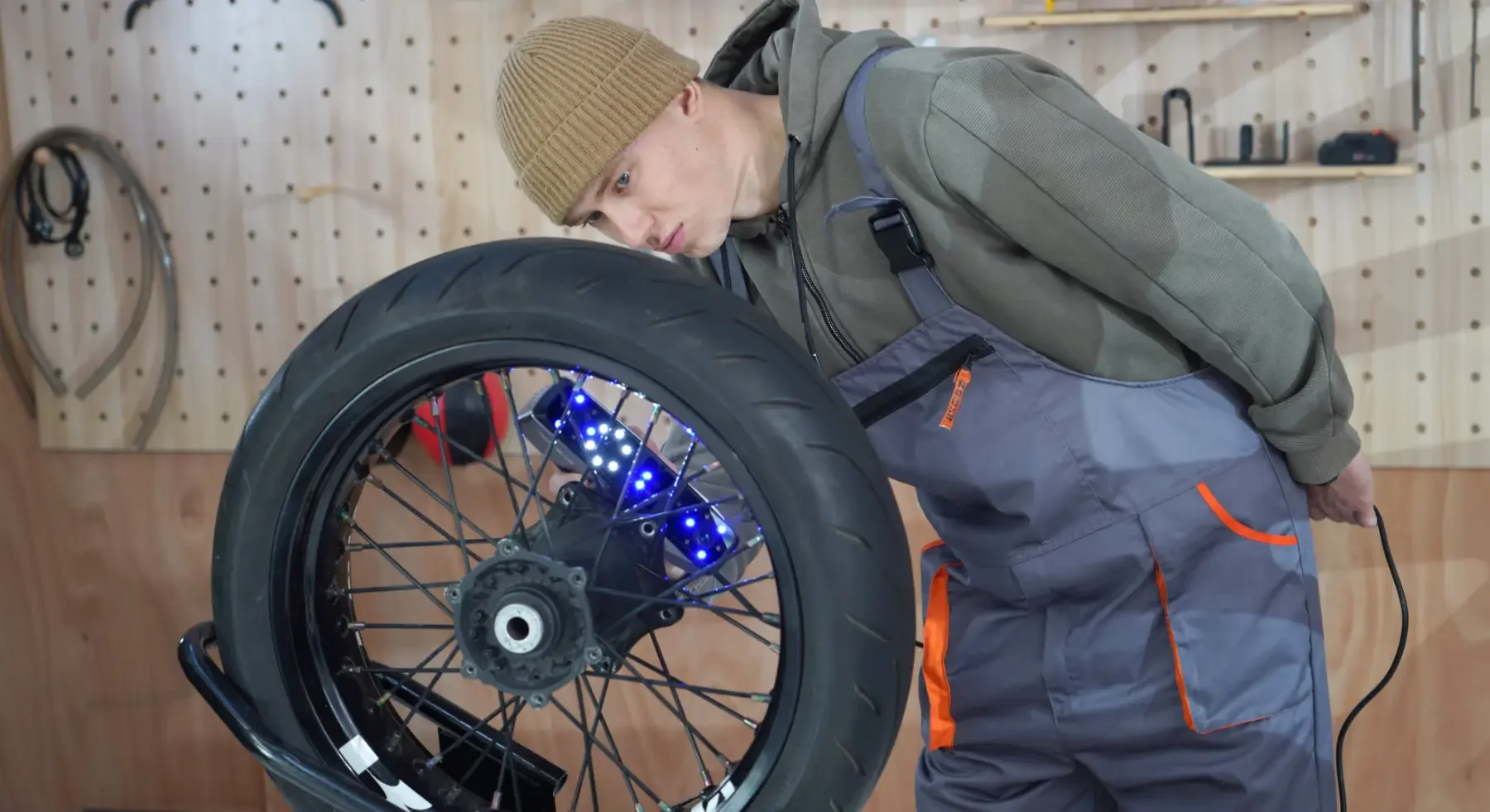

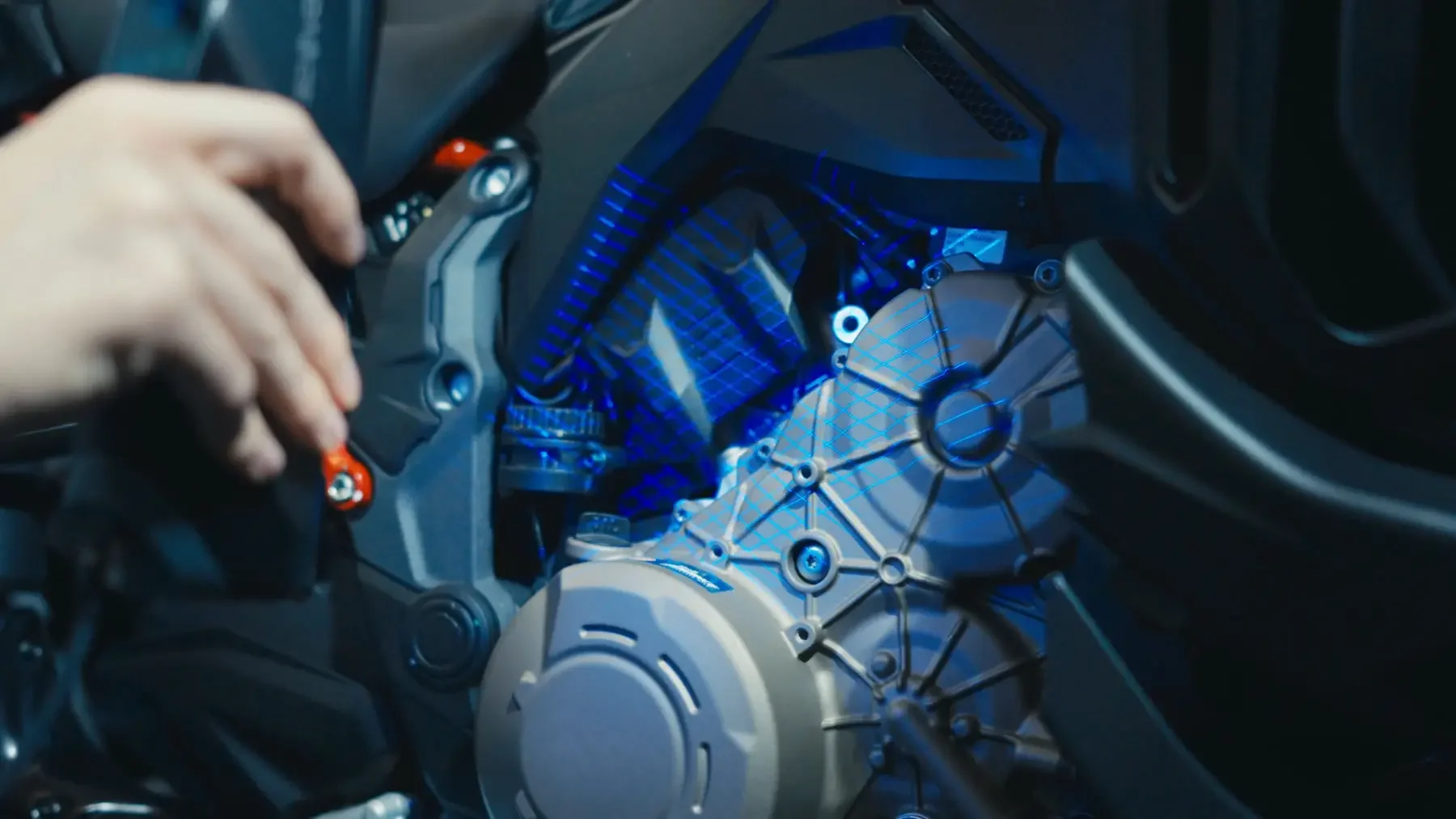

• 34 Blue Laser Lines

• 22 Infrared Laser Lines (Invisible).

  Supports markerless and invisible-light scanning

• Infrared VCSEL Structured Light (Invisible)

  Infrared Linear-array Structured Light (Speckle)

  Supports markerless scanning, invisible-light scanning, partial fine scanning, and rapid scanning at ultra-long-distance range and ultra-large FoV

Laser Class: Class II & Class I (eye-safe)

Basic Accuracy: Up to 0.04mm

Volumetric Accuracy: Up to 0.04mm + 0.06mm/m

Point Distance: 0.05mm — 5mm

Scanning Rate:

• Up to 3.3 million points per second (Blue Laser Lines)

• Up to 2.45 million points per second (Infrared Laser Lines)

• Up to 4.5 million points per second (Infrared VCSEL Structured Light)

Scanning Area: Up to 1100mm x 1000mm

Scanning Frame Rate:

• Up to 70fps (Marker Alignment)

• Up to 30fps (Speckle)

Ability to Capture Texture: Yes, 24-bit color + texture mapping

Operating Temperature: 0°C to ~40°C

File Output: .obj, .stl, .ply, .asc, .mk2, .txt, .epj, .apj, .spj, .map, .sk

Connectivity: USB 3.0

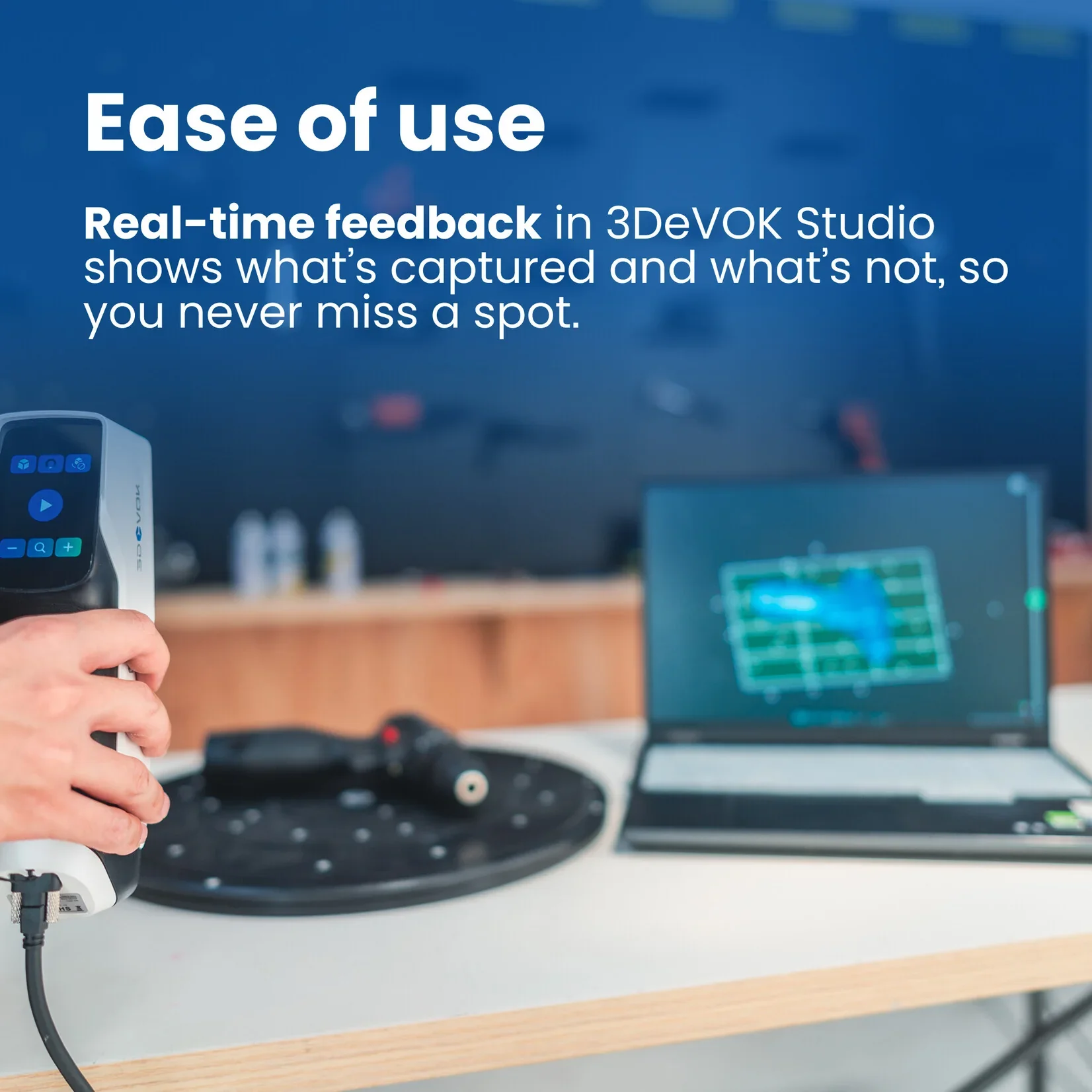

Supported Software: 3DeVOK Studio

Can launch into Geomagic, QuickSurface, Verisurf, PolyWorks, BesTexture, ZEISS Quality Suite

Operating Systems: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above

Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above; Graphics memory: 6GB and above

Unit Dimensions: 215 mm × 73 mm × 53 mm

Unit Weight: 550 grams

• Master calibration plate

• Power adapter

• Power cable (with plug)

• Power and data cable

• Strap for device fixation on hand

• Power and data cable

• Gray card

• Reflective markers

• Hybrid alignment stickers

• Dust-free cloth

• Carrying case

• USB drive with user guide and 3DeVOK Studio Software
