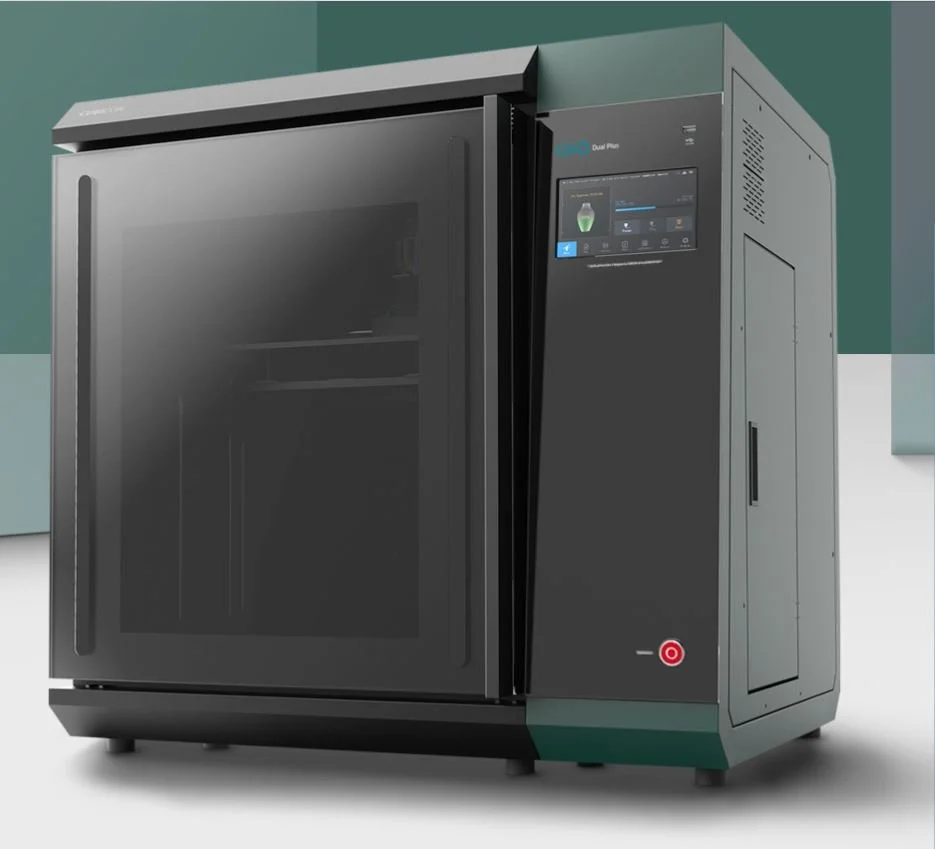

Cubicon Dual Plus Si30 - PEEK

$23,999 +GST

300 x 300 x 300mm

Dual High Temperature Water Cooled Nozzles and Heated Chamber, fully automated calibration

Ideal for high temperature material like ABS, Polycarb or PEEK.

  • Build Size: 300 × 300 × 300mm

    Extruder Type: Water Cooled Direct Drive Dual Extruders.

    High Temp Nozzle on left Extruder: 500 degrees C. Standard right hand nozzle

    Print Speed (max): 200mm/s, 50mm/s (recommended)

    Extruder Quantity: 2

    Nozzle Diameter: 0.4mm standard (0.6 optional)

    Extruder Temperature: 500°C (Left) Less than 260°C (Right)

    Platform Temperature: ≤150°C

    Chamber Temperature: ≤80°C

    Print Precision: ± 0.1 mm

    Connectivity: USB, (FAT32/NTFS), Ethernet, Wifi

    Supported Software: Cubicreator Simplify3D

    Operating Systems: Windows(7,8,10),Mac OS X

  • Common Filament Compatibility: PLA, ABS, TPU, PETG

    Engineering Filament Compatibility:

    PC,ASA,PP, PA, Nylon, PEEK, CF-PEEK(Carbon fiber), PEKK

    Support Filament Compatibility:

    AquaSys GP, AquaSys120, AquaSys180, HIPS, VXL111

  • Input Power: 220-240V - 50/60Hz

    Rated Power: 13-15A

    Resume Printing: Save data when power off

    Filament Detection: Pause when filament runs out

  • Machine Dimensions: 830 × 720 × 810mm

    Machine Weight:

    Package Weight: 140Kg
